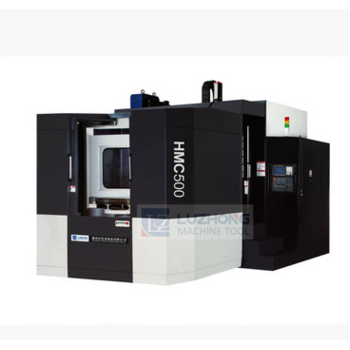

卧式加工中心HMC500液压加紧重切削卧式CNC加工中心系统可选配

产品配置Product configuration:

标准配置Standard configuration:

◆数控系统：FANUC 0i MD

The CNC system: FANUC 0i MD

◆刀库：24把机械手刀库

The knife: 24 the mechanical hand knife

◆主轴：高刚性、精密主轴单元

The spindle：High rigidity and precision spindle unit

选择配置Select the configuration:

◆三菱M70B/M70A或西门子828D

M70B/M70A Mitsubishi OR SIEMENS 828D

◆自动排屑系统

Automatic chip system

◆数控连续分度工作台（不适用于重切削）

CNC continuous indexing table (not suitable for heavy cutting)

◆刀库：链式刀库

The knife: Chain knife library

产品主要性能特点The main performance characteristics：

1 定柱式机构

1 Fixed column structure

2 数控等分工作台，最小分度10，液压夹紧，适合重切削。

2 Numerical control sub table, minimum 10, hydraulic clamping, suitable for heavy cutting.

3 气液转换升降平衡装置

3 Gas liquid conversion lift balance device

4 Z向四道矩形硬轨；X向超重载滚柱式直线导轨；Y向矩形硬轨

4 Z axia to the four rectangular hard rail;X axia to overload roller type linear guide rail;Y axia to rectangular hard rail

用途Application：

◆卧式加工中心主轴转速高，刚性强，扭矩大。主轴配有冷却循环系统，双工作台自动旋转交换，减少辅助时间，提高效率。该系列机床性能完善，精度稳定，适用于加工各类型箱体零件及二维、三维曲面，是机械、汽车、传播、纺织机械、印刷机械、农机等行业加工箱体类零件的关键设备。

Horizontal machining center spindle speed is high, the rigidity is strong, the torque is big. The main shaft is equipped with cooling system, the automatic rotation of the double working table, reducing the auxiliary time, improve efficiency. This series of machine tool performance is perfect, the precision is stable, it is suitable for processing various types of box parts and two dimensional, three-dimensional surface, it is mechanical, automobile, communication, textile machinery, printing machinery, agricultural machinery and other industries processing box type parts of key equipment.
